Construction Wastecone Crusher Machine Cast Steel Frame Material 300 T/H
Spring Stone Cone Crushing Machine Introduction:
The spring stone cone crusher is widely used in mining, metallurgy, construction waste material, highway, railway, water conservancy and chemical industries for crushing various materials with compression strength less than 350Mpa. It is preferred equipment for the complete product line as tertiary crusher.
White Lai Construction Waste Crusher Machine Models:
| Model | Cavity | Motor | Weight | Capacity (t/h) in Different Discharge Size (mm) |
| (KW) | (t) | 6 | 10 | 13 | 16 | 19 | 22 | 25 | 38 | 51 | 64 |
| WLC600 | Coarse | 37-55 | 5.3 | | 20 | 25 | 30 | 35 | 45 | 50 | 76 | | |
| WLF600 | Fine | | | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 60 | | |
| WLC1000 | Coarse | 90-110 | 10.8 | | | 80 | 100 | 135 | 150 | 175 | 235 | | |
| WLM1000 | Medium | | | | 65 | 75 | 90 | 120 | 135 | 150 | | | |
| WLF1000 | Fine | | | 52 | 62 | 72 | 78 | 115 | | | | | |
| WLC1160 | Coarse | 110-132 | 16 | | | 115 | 135 | 150 | 180 | 200 | 260 | | |
| WLM1160 | Medium | | | | 100 | 110 | 120 | 135 | 165 | 175 | | | |
| WLF1160 | Fine | | | | 80 | 105 | 110 | 140 | | | | | |
| WLC1300 | Coarse | 132-160 | 23 | | | | 150 | 180 | 200 | 230 | 310 | 390 | |
| WLM1300 | Medium | | | | | 115 | 140 | 160 | 190 | 210 | | | |
| WLF1300 | Fine | | | | 90 | 115 | 145 | 160 | | | | | |
| WLC1380 | Coarse | 185-220 | 27 | | | | | 200 | 220 | 260 | 350 | 440 | |
| WLM1380 | Medium | | | | | | 155 | 180 | 200 | 220 | | | |
| WLF1380 | Fine | | | | | 150 | 190 | 210 | 230 | | | | |
| WLC1500 | Coarse | 185-220 | 37.8 | | | | | | 265 | 310 | 420 | 525 | 580 |
| WLM1500 | Medium | | | | | | | 215 | 240 | 265 | 320 | | |
| WLF1500 | Fine | | | | | 180 | 210 | 235 | 255 | 275 | | | |
| WLC1680 | Coarse | 250-300 | 44.3 | | | | | | 330 | 390 | 525 | 655 | 725 |
| WLM1680 | Medium | | | | | | 210 | 250 | 280 | 300 | | | |
| WLF1680 | Fine | | | | | 180 | 220 | 260 | 335 | | | | |
Hydraulic Spring Compound Stone Cone Crusher Features:
1. Our machine’s fine crushing chamber shape increases the effective crushing surface. The machine has the capacity to process larger feed size, increases 1/3 production capacity comparing with other cone crushers and can produce fine particles and cubic products. The mantle core and the crushing chamber are processed by digital control CNC machine, which makes the replacement of wearing parts quick and easy, eliminates the need to fill epoxide resin and improves the operational efficiency.
Traditional cone crusher with the ancient crushing chamber structure, has limited crushing surfaces, low production and produces more elongated and flaky particles content. Epoxide resin needs to be filled between the mantle cone the crushing surface, which makes the replacement difficult, increases the failure rate and machine halt time and causes unstable performance of the machine.
2. Hydraulic cylinder device can achieves iron release and quick chamber clearing by its hydraulic cylinders. The recommended jacking distance is no more than 75mm.
3. The machine is installed with hydraulic pressure adjustment device so as to quickly adjust the discharge gap and clear the crushing chamber and therefore reduce the time of machine halt.
Mining Equipment Stone Cone Crushing Machinery Components:
The cone crusher has the main structure of frame, horizontal axis, moving cone, balance wheel, eccentric sleeve, upper broken wall (fixed cone), lower broken wall (moving cone), hydraulic coupling, lubrication system and hydraulic system.

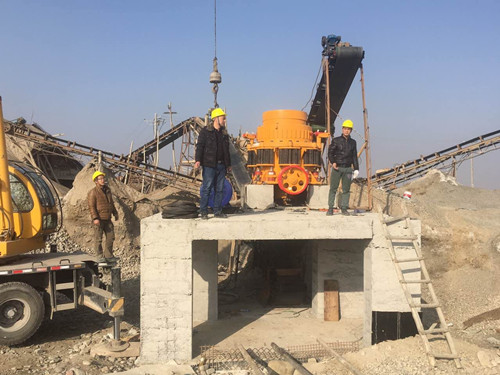

Construction Waste Crusher Stone Cone Crushing Machine WL1680 Pictures:
